Double & Triple Drum Type Permanent Magnetic Separators

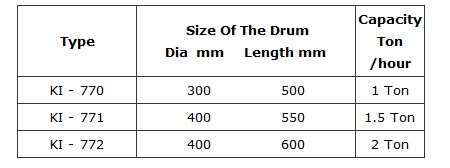

Double Drum Type Permanent Magnetic Separator :

Specification :With reduction gear, l HP 3 Phase Electric Motor to drive the drum at a speed of 15 RPM, Vibrating Tray fixed in between Hopper and Drum extra high power permanent  magnetic plate at bottom side & Machine complete with close body.



Special modifications can be made as per requirement of the customer.

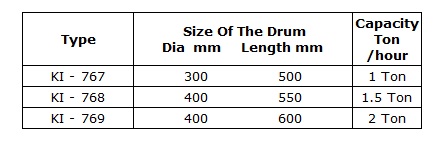

Triple Drum Type Permanant Magnetic Separator :

Specification :With reduction gear, 1 HP 3 Phase Electric Motor to drive the drum at a speed of 15 RPM, Vibrating Tray fixed in between Hoopper and Drum,extrahigh power permanant  magnetic plate at bottom side & Machine complete with close body.

Salient Features :-

• Drum consists of high coercivity modern anisotropic Permanant Magnets.
• Strong & rugged construction.
• Automatic separation of iron impurities.
• Completely closed design to avoid dusting and air pollution.

Permanent Magnetic Drum :

Drum manufactured from strong covercivity , strong ceramic magnets.Its radial magnetic design eliminates dead sports and no maintenance is required.

Outlet :
Fixed with extra magnetic plate to pure the separated material.

Iron collecting Tray :
For collecting separated iron from the components.

Motor :
A 3 Phase or signal phase motor to run the drum.

Vibrating Inlet With Extra Magnetic Plate:
To Vibrate the component  and flow them to a uniform basis

Hopper :
Specially manufactured to flow the material on the drum fitted with continuous control on the flow.

Pulleys :
Can simply reduce the speed and easily to maintain.
